很多朋友對于膜結構停車棚的安裝不是特別清楚。今天浙江麗水篷王膜結構廠家的周工程師帶大家了解一下具體的安裝方法。希望對大家有幫助

Many friends are not particularly clear about the installation of membrane structure parking sheds. Today, engineer Zhou from Zhejiang Lishui Canopy King Membrane Structure Factory will show you the specific installation method. I hope everyone has to help

1、首先完成地基基坑開挖，然后經行鋼筋籠安裝，之后預埋板調整，最后混凝土澆筑。

 測量放樣：根據土建標高基線測量預埋件標高中心線，檢查標高偏差，預埋件左右偏差。 對結果進行整理，確定預埋件分離的調整處理方案。 預埋件安裝處理：定位預埋件安裝位置，鉆孔安裝。 要求嵌入件的位置準確、嵌入牢固。 仰角偏差不大于9mm，左右位移不大于20mm。

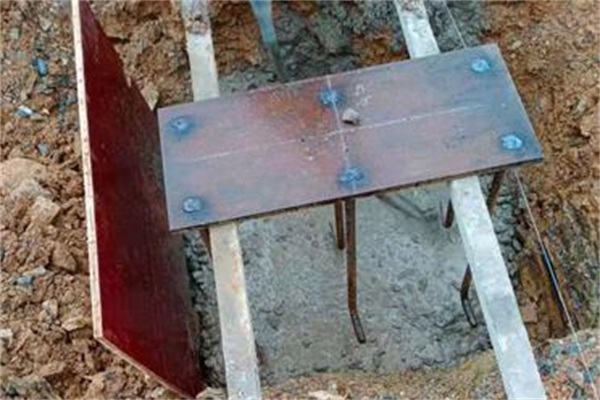

1. First complete the excavation of the foundation pit, then install the steel cage, then adjust the embedded slab, and finally pour the concrete.

  Measure and stake out: Measure the elevation center line of the embedded part according to the civil construction elevation baseline, check the elevation deviation, and the left and right deviation of the embedded part. Organize the results and determine the adjustment and treatment plan for the separation of embedded parts. Embedded parts installation treatment: positioning the embedded parts installation location, drilling and installation. It is required that the position of the insert is accurate and the insert is firm. The elevation angle deviation is not more than 9mm, and the left and right displacement is not more than 20mm.



2、膜結構車棚立式鋼架：膜材需切割后運至施工現場準備施工材料。 先將立柱焊接在預埋件上，然后焊接安裝吊臂。 需要檢查焊接接頭，調整吊臂的設計斜度，確保焊接正確。 側軌懸臂正確后，安裝另一側軌懸臂，到位后點焊。 另外還要焊接橫撐，把鋼架組裝成一個整體。 注意焊接工作場所應有良好的通風、排氣裝置和良好的照明。

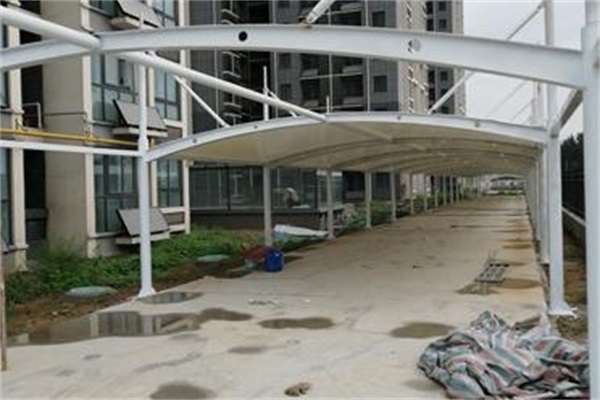

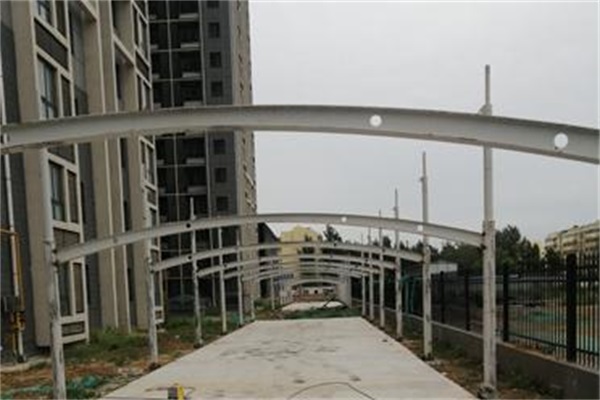

2. Membrane structure carport vertical steel frame: the membrane material needs to be cut and transported to the construction site to prepare construction materials. The column is welded to the embedded part first, and then the boom is welded and installed. It is necessary to check the welded joints and adjust the design inclination of the boom to ensure that the welding is correct. After the side rail cantilever is correct, install the other side rail cantilever and spot weld it in place. In addition, we must weld the cross brace to assemble the steel frame into a whole. Note that the welding workplace should have good ventilation, exhaust devices and good lighting.



3、蓋上篷布并擰緊膜材：在平面上展開膜體后，用夾板將膜材與電纜連接起來。 夾板規格及夾板間距應嚴格按設計要求安裝。 對于一次吊裝到位的膜體，夾板螺栓和螺母也必須一次擰緊到位。 潤色：找到需要潤色的區域，然后涂上相應顏色的油漆。 刷漆時在下面墊一層紙，保護地板不被弄臟，提高膜結構停車棚的使用壽命。

3. Cover the tarp and tighten the membrane material: After unfolding the membrane body on the plane, connect the membrane material and the cable with a splint. The splint specifications and splint spacing should be installed in strict accordance with the design requirements. For the membrane body that is hoisted in place at one time, the splint bolts and nuts must also be tightened in place at one time. Touch up: Find the area that needs touch up, and then apply the corresponding color of paint. When painting, put a layer of paper underneath to protect the floor from being soiled and increase the service life of the membrane structure parking shed.



4、工程驗收后交貨及竣工：檢查連接件是否焊接牢固：拉伸膜是否平整、無變形等，有無問題。 如能滿足安全使用要求，可按技術處理方案和談判文件驗收。 最后通過后進行發貨，工作完成，即可使用！

4. Delivery and completion after acceptance of the project: Check whether the connecting parts are welded firmly: whether the stretched film is flat and free of deformation, etc., whether there are any problems. If it can meet the requirements of safe use, it can be accepted according to the technical processing plan and negotiation documents. Shipment is finally approved, and the work is completed, ready to use!



5、后期持續定期的檢修與保養。很多膜結構車棚不是被用壞的，而是長期疏于管理造成膜結構接縫處生銹或者膜布蓋壓處腐爛，最終導致膜結構車棚損壞的。

5. Continuous and regular overhaul and maintenance in the later period. Many membrane structure carports are not worn out, but long-term neglect of management has caused rust at the joints of the membrane structure or rot at the pressure of the membrane cloth cover, which eventually leads to damage to the membrane structure carport.



上面這些就是麗水天篷王膜結構安裝工程公司為大家講解膜結構車棚的安裝方法。 如果選擇膜結構車棚，在安裝制作時一定要注意以上事項，才能保證車棚是一個合格且質量可靠的項目！如果您需要膜結構篷布膜材，或者各類膜結構車棚安裝，可以隨時聯系浙江麗水篷王膜結構工程有限公司。

These are the Lishui Canopy King Membrane Structure Installation Engineering Company to explain the installation method of the membrane structure carport. If you choose a membrane structure carport, you must pay attention to the above matters during installation and production to ensure that the carport is a qualified and reliable project! If you need membrane structure tarpaulin membrane materials, or various membrane structure carport installations, you can contact Zhejiang Lishui Canopy King Membrane Structure Engineering Co., Ltd. at any time.
